Connecting Link

Lashing Systems

The standard lashing systems are usually as follows:

•    1-ton x 10 mtr
•    3-ton x 10 mtr
•    5-ton x 10 mtr
•    10-ton x 10 mtr

They can also be supplied for any length as requested. Some samples
of lashing system and their fitting are as shown below.

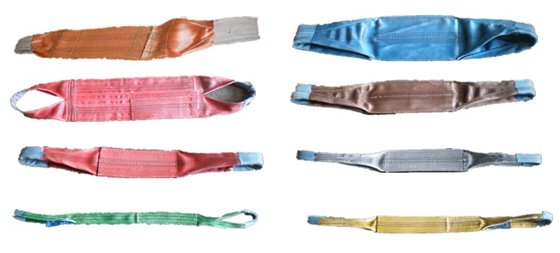

‘The standard LIFT-TEX^®(SF = 7:1 and 8:1) and POLY-TEX^® (SF = 6:1) round slings cover the ranges of WLL and length from 1- 10-ton and 1-10 mtr. The table below presents the working load limit (WLL) for different modes of lifting.’

Wire Grip

Ratchet Puller

Plain and Geared Trolley

Conduit Snake

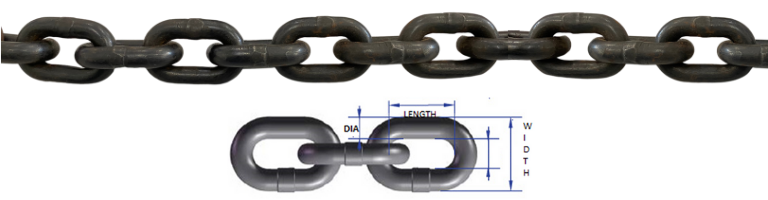

•    G43 chain: polished high test chain used for heavy duty trucking, towing, hauling and tie-down (WLL 1180-7350 kg);
US TYPE ASTM80

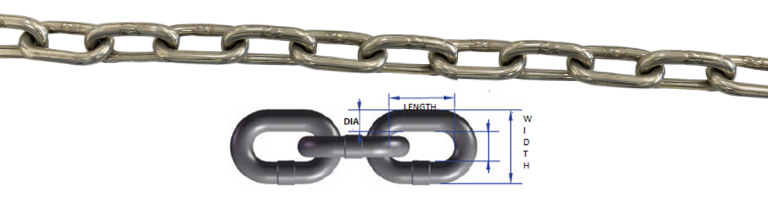

•    Medium-link and long-link chains: E galvanized  chains with bright finish  generally used for lower duty towing, hauling, load tie-down, etc (WLL 200-12150 kg); US TYPE NACM84/90


Stainless steel chain: there are two general types, AISI 304 and AISI 316 stainless steel chain which  offer a higher resistant to corrosion; US TYPE ASTM80; They are generally used food processing, chemical and marine applications where corrosion resistant is of  primary concern.

Chain Slings

Chain slings can be using lifting chains (G80 or G100) with connecting links using hooks or rings or shackles as end fitting such as:

•     One-leg chain sling
•     Two-leg chain sling
•    Three-leg chain sling
•    Four-leg chain sling
•    One-leg choker chain sling
•    Two-leg choker chain sling
•    One-leg round chain sling
•     Two-leg round sling

‘The standard LIFT-TEX^®(SF = 7:1 and 8:1) and POLY-TEX^® (SF = 6:1) products

Cover the ranges of WLL and length from 1- 10-ton and 1-10 mtr. The table below presents the working load limit (WLL) for different modes of lifting.’

G-2150 Bolt Type Chain Shackle

G-2130 Bolt Type Anchor Shackle

G-210 Screw Pin Chain Shackle

G-209 Screw Pin Anchor Shackle

Cable Cutter
