DA Oblong Master Link

DA Oblong Master Link

• Tested and manufactured in accordance with DNV GL ST-2.7-1, EN 1677-4, ASME B30.26.
• Certified by DNV GL ST-2.7-1.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
• Proof Load tested to 2.5 times the Working Load Limit (WLL).
• Design factor 5:1.
• Charpy test of 42 joules (31ft. lbs.) at -40°C (-40°F) for normal section.
• Charpy test of 27 joules (20ft. lbs.) at -40°C (-40°F) for welded section.
• Engineered flat, suitable for omega links

DA Master Link

DA Master Link

• Welded alloy steel, quenched and tempered.
• Tested and manufactured in accordance with DNV GL ST-2.7-1, EN 1677-4, ASME B30.26.
• Certified by DNV GL ST-2.7-1.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
• Proof Load tested to 2.5 times the Working Load Limit (WLL).
• Design factor 5:1.
• Charpy test of 42 joules (31ft. lbs.) at -40°C (-40°F) for normal section.
• Charpy test of 27 joules (20ft. lbs.) at -40°C (-40°F) for welded section.
• Engineered flat, suitable for omega links

Send us an enquiry ...

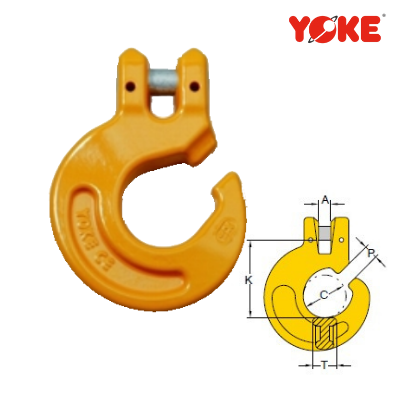

G80 Clevis Clutch Code "KC"

G80 Clevis Clutch Code ''KC''

• Design factor 4:1 proof tested and certified.
• Tested acc. to EN 1677

G80 Shortening Clutch With Half Link

G80 Shortening Clutch With Half Link

• Design factor 4:1 proof tested and certified.
• Tested acc. to EN 1677

Send us an enquiry ...

G80 Clevis Sling Hook With Latch, CSH Type

G80 Clevis Sling Hook With Latch, CSH Type

• Lifting chain is attached directly to the hook without a connecting link.
• Quenched and tempered.
• 100% magnaflux crack detection.
• Standard: EN1677
• Material: Forged alloy steel
• Proof load at 2.5 times of the working load limit.
• Safety factor 4:1
• Powder coated surface finish.

G80 Clevis Self Locking Hook CSK Type

G80 Clevis Self Locking Hook CSK Type

• Ensure that the load is attached to the chain system at the bottom of the load.
• Hooks will not open when under load as the latch close automatically.
• Quenched and tempered.
• 100% magnaflux crack detection.
• Standard: EN1677
• Material: Forged alloy steel
• Proof load at 2.5 times of the working load limit.
• Safety factor 4:1
• Powder coated surface finish.

G80 Clevis Sling Hook With Latch Code "YM"

G80 Clevis Sling Hook With Latch Code ''YM''

• Design factor 4:1 proof tested and certified Tested acc. to EN 1677

G80 Clevis Grab Hook Code "YK"

G80 Clevis Grab Hook Code ''YK''

• Design factor 4:1 proof tested and certified Tested acc. to EN 1677

G80 CLEVIS SELF LOCKING HOOK, CODE "YD"

G80 Clevis Self Locking Hook Code ''YD''

• Design factor 4:1 proof tested and certified Tested acc. to EN 1677

G80 Clevis Forest Hook Code "YT"

G80 Clevis Forest Hook Code ''YT''

• Design factor 4:1 proof tested and certified Tested acc. to EN 1677

Send us an enquiry ...

G80 Eye Sling Hook With Latch, ESH Type

G80 Eye Sling Hook With Latch, ESH Type

• Comes with spring-loaded safety latch.
• Quenched and tempered.
• 100% magnaflux crack detection.
• Standard: EN1677
• Material: Forged alloy steel
• Proof load at 2.5 times of the working load limit.
• Safety factor 4:1
• Powder coated surface finish.

G80 Eye Self Locking Hook，ESK Type

G80 Eye Self Locking Hook，ESK Type

• Ensure that the load is attached to the chain system at the bottom of the load.
• Hooks will not open when under load as the latch close automatically.
• Quenched and tempered.
• 100% magnaflux crack detection.
• Standard: EN1677
• Material: Forged alloy steel
• Proof load at 2.5 times of the working load limit.
• Safety factor 4:1
• Powder coated surface finish.

G80 Eye Self Locking Hook Code "YC"

G80 Eye Self Locking Hook Code ''YC''

• Design factor 4:1 proof tested and certified Tested acc. to DIN EN 1677

G80 Eye Grab Hook Code "YH"

G80 Eye Grab Hook Code ''YH''

• Design factor 4:1 proof tested and certified Tested acc. to DIN EN 1677

G80 Eye Sling Hook With Latch Code "YP"

G80 Eye Sling Hook With Latch Code ''YP''

• Design factor 4:1 proof tested and certified Tested acc. to DIN EN 1677

G80 Eye Foundary Hook Code "YN"

G80 Eye Foundary Hook Code ''YN''

• Design factor 4:1 proof tested and certified Tested acc. to DIN EN 1677

ROV Eye Sling Hook

ROV Eye Sling Hook

• Forged alloy steel, quenched and tempered.
• Designed specifically for ROV application.
• Individually stamped with the Working Load Limit.
• Shackle Bows are painted yellow to ensure ease of sight in water.

G80 Swivel Self Locking Hook，SSK Type

G80 Swivel Self Locking Hook，SSK Type

• Ensure better load attachment thanks to the rotating element.
• Swivel eye allows for 360-degree rotation before load is applied.
• Hook that will not open when under load as the latch close automatically.
• Quenched and tempered.
• 100% magnaflux crack detection.
• Standard: EN1677
• Material: Forged alloy steel
• Proof load at 2.5 times of the working load limit.
• Safety factor 4:1
• Powder coated surface finish.

G80 Eye Swivel Hook With brass bushing, Code "YSW"

G80 Eye Swivel Hook With brass bushing, Code ''YSW''

• Design factor 4:1 proof tested and certified Tested acc. to EN 1677

Send us an enquiry ...

G80 ROUND SLING SELF LOCKING HOOK

G80 Round Sling Self Locking Hook

• The Round Shape is designed to provide great protection to your synthetic round sling on every loading.
• Offer complete range of hooks from 1 ton up to 21.2 tons.
• Assembly is fast and easy with only a hammer required.
• The hook with Self Locking function meets real safe and safer required.
• Design factor 4:1 proof tested and certified.

G80 Eye Container Hook Code "KA"

G80 Eye Container Hook Code ''KA''

• Design factor 4:1 proof tested and certified.

G100 Shorterning Clutch

G100 Shorterning Clutch

• Quenched and tempered.
• 100% magnaflux crack detection.
• Standard EN1677
• Forged Alloy Steel material.
• Proof Load tested to 2.5 times the Working Load Limit (WLL).
• Design factor 4:1.
• Powder coated surface finish.

G100 Clevis Sling Hook With Latch CSH Type

G100 Clevis Sling Hook With Latch CSH Type

• Lifting chain is attached directly to the hook without a connecting link.
• Approximately 25% stronger than G80.
• Quenched and tempered.
• 100% magnaflux crack detection.
• Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
• Standard: EN1677
• Material: Forged alloy steel
• Proof load at 2.5 times of the working load limit.
• Safety factor 4:1
• Powder coated surface finish.

G100 Clevis Self Locking Hook CSK Type

G100 Clevis Self Locking Hook CSK Type

• Ensure that the load is attached to the chain system at the bottom of the load.
• Hooks will not open when under load as the latch close automatically.
• Approximately 25% stronger than G80.
• Quenched and tempered.
• 100% magnaflux crack detection.
• Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
• Standard: EN1677
• Material: Forged alloy steel
• Proof load at 2.5 times of the working load limit.
• Safety factor 4:1
• Powder coated surface finish.
